Hot Sale Factory Direct Automatic Door Automated Sliding Ac Gate Motor Motors With 100% Safety
We are leading manufacture and trading company in electronica industry for more than 10 years also have a professional R&D team.With years of export experience along with excellent quality, advanced services and competitive prices, Gatech has won numerous customers' trust and support. Welome to inquire samples for testing,you could place your order after you testing.Our product range includes: sliding gate operator, swing gate opener, rolling shutter motor,automatic boom barrier and access control equipment such as: remote control, receiver, flash lamp,gear rack,control panel, photocell, wifi controller.

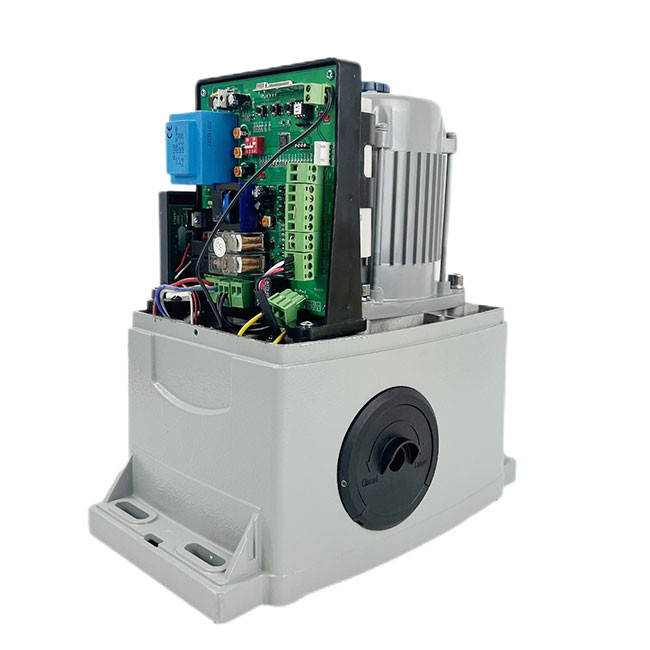

The 2000 kg all-in-one machine has a built-in circuit board, which makes the overall installation more convenient, the maximum load is less than 2000 kg, and the price is affordable and cost-effective.
Features
A.Magnetic limit switch .
B.Aluminum alloy Gear Box.
C.Thermal protection at 125℃ built in motor winding.
D.In case of power failure,the gate can be opened and closed manually after release cluth.

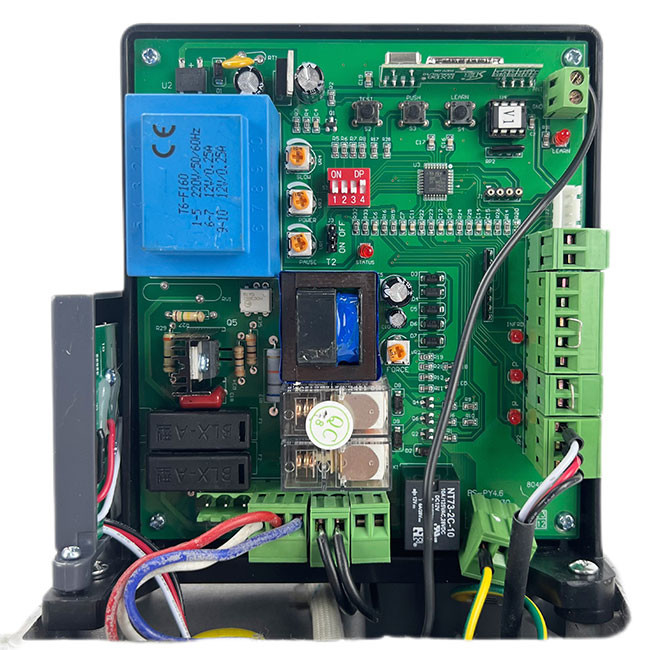

E.Built-in control board.
F.Proection class IP55.
G.Operating environment Temperature: -20℃~+50℃
a.Easy to install and maintain.
b.Terminals for Push button,Photocell,Flash lamp.
c.Digital display makes Easy Programming.
d.Electronic soft -start, ensures the motor stars steadily and smoothly.
e.Intelligent terminals for photocell, alarm lamp,external receiver, etc.
f.Optional wire control remote contro
electric gate motors,sliding gate motor 2000kg,for electric gate motor price
| Product Name | Heavy duty sliding gate motor |
| Description | G20AC |
| Power supply | 220V+10% 50HZ |
| Power of motor | 500W |
| Motor speed | 1400r/min |
| Max weight of gate | <2500Kg |
| Motor thermal protection | 130℃ |
| Environment temperature range | -20℃ 55℃ |
high power sliding door opener industry gate operator oil hwavy industrial,high power sliding door opener industry gate operator
high power sliding door opengate motor sliding gate opener,electric gate opener motor,automatic gate motor,sliding gate motor,sliding gate operatorer industry gate operator oil,sliding rolling gate opener,sliding door opener industry gate operator,large power sliding gate opener price,sliding automatic gate opener,for automatic sliding swing gate openers operators
Packaging Details: Standard Exporting Packing
Measurement of carton box: 34*28*42 cm
Weight : 20KG
Function Introduction
1)This type of remote door opener is our new developed product Integrated Mechanical and electrical, ie, with PCB inside and this is an innovative sliding gate operator, which Low stand-by consumption is the best design for solar charging.
2)One touch easy programing,The contronl system learns the open and closing limit automatically.
3)Electronic soft -start, ensures the motor stars steadily and smoothly.
4)Digital display makes Easy Programming.
5)Release key for power failure and looking the operator's cover.
6)Intelligent terminals for photocell, alarm lamp,external receiver, etc.
7)asy to install and maintain,Optional wire control remote control.
8)Mechanical limit switch (spring limit switch) or magnetic limit switch is optional.
9)Release key for power failure.
10)Optional line control or remote control.
Trouble shooting
| Trouble | Cause | Shooting |
| Motor can not work | 1,No power supply
2,Break fuse
3,Surpass load | 1,Check power supply
2,Change fuse
3,Check if any barrier on the track |
| Can open but can not close | 1,Photocell is not connected properly
2,Photocell beam is block off
3,Photocell is broken | 1,Connect the photocell
2,Clear out obstacle
3,Change a new device |
Can open (close) but
can not close (open) | 1,Position of limit switch is not correct
2,Limit switch is damaged | 1,Adjust position
2,Change limit switch |
| Can not locate accurately | 1,Distance of limit switch is too large
2,Limit switch is wrong
3,Magnetic-stell’s
position is wrong | 1,Adjust position of limit switch
2,Change limit switch
3,Re-adjust the position |
| Release device is doesn’t work | 1,Operating handle is broken
2,Worm gears are jammed | 1,Change the handle
2,Rotate the pinion |
Push the “OPEN” button
but the gate close | Push the “OPEN” button
but the gate close | Connect correctly according
to wiring diagram |
| Motor can turn but can not work | 1,Compression spring of clutch is dead
2,Gear box is released | 1,Change the spring
2,Couple the worm gear |
